| Part Number | Download | Circuit |
Polarity |

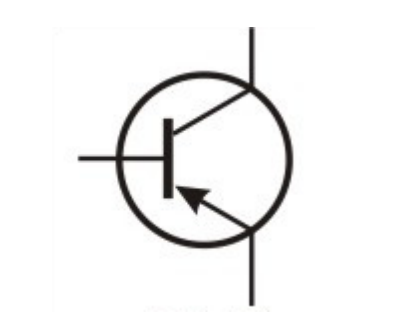

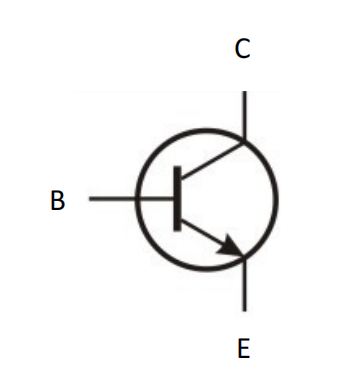

PCM(W) |
IC(A) |
VCBO(V) |
VCEO(V) |
VEBO(V) |
hFE(Min) |
hFE(Max) |
hFE@VCE(V) |
hFE@IC(A) |
Package |
| BC857 |
|
|
PNP | 0.20 | -1.50 | -50 | -45 | -5 | 125 | 800 | 5 | 0.02 | |
| BC856 |
|
|
PNP | 0.20 | -0.10 | -80 | -65 | -5 | 125 | 475 | 5 | 0.02 | SOT-23 |
| SS8050 |
|
|
NPN | 0.25 | 1.50 | 40 | 25 | 5 | 30 | 400 | 1 | 0.10 | SOT-323 |
| TIP127 |
|
|
PNP | 0 | 0 | 100 | 100 | 10 | 2000 | 15000 | 5 | 2 | TO-220 |
| SS8550 |
|
|
PNP | 0.20 | -1.50 | -40 | -25 | -5 | 30 | 400 | 1 | 0.80 | SOT-323 |
| SS8050KE |
|
|
NPN | 0.50 | 1.50 | 40 | 20 | 5 | 160 | 320 | 1 | 0.10 | SOT-89-3L |
| SS8050 |
|
|
NPN | 0.30 | 1.50 | 40 | 25 | 5 | 30 | 400 | 1 | 0.10 | SOT-23 |
| S9018 |
|
|
NPN | 0.40 | 0.05 | 30 | 15 | 5 | 100 | 200 | 5 | 0 | SOT-23 |
| S9015 |
|
|
NPN | 0.45 | 0.10 | 60 | 50 | 5 | 100 | 500 | 5 | 0 | SOT-23 |
| S9014 |
|
|
NPN | 0.45 | 0.10 | 50 | 45 | 5 | 300 | 400 | 1 | 0.05 | SOT-23 |
| S9013 |
|
|
NPN | 0.63 | 0.50 | 40 | 20 | 5 | 200 | 350 | 1 | 0.05 | SOT-23 |
| S9012 |
|
|
PNP | 0.63 | 0.50 | 40 | 20 | 5 | 200 | 350 | 1 | 0.05 | SOT-23 |
| S8550 |
|
|
PNP | 300 | 0.50 | 40 | 25 | 5 | 30 | 400 | 1 | 0.05 | SOT-23 |
| S8050 |
|
|
NPN | 0.30 | 0.50 | 40 | 25 | 5 | 30 | 400 | 1 | 0.05 | SOT-23 |
